AB=CD Harmonic Pattern Indicator: Equal Legs Within Tolerance

Written by Dominic Walsh · Published 22 May 2026 · Last updated 18 Sep 2026

AB=CD is the simplest harmonic pattern and the foundation of most others. Two price legs of roughly equal length, separated by a retracement. The ab=cd harmonic pattern indicator finds the pivots, measures the two legs, and marks the bar where CD finishes close enough to AB to count.

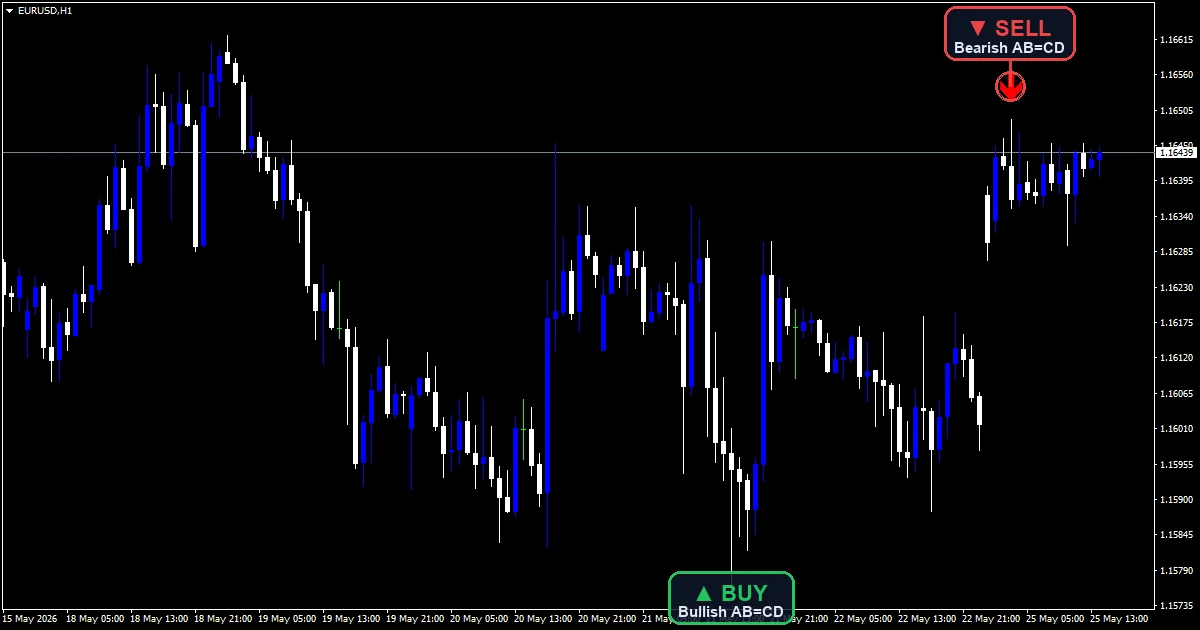

This build ships as a compiled .ex4 for MT4 and .ex5 for MT5; the screenshots below come from EURUSD H4.

Platforms	MT4 (.ex4) + MT5 (.ex5)
Chart window	Main price chart
Plots	3: Pattern, Buy, Sell
Alerts	popup, push notification, email, sound
Inputs	9

What the AB=CD Harmonic Pattern Indicator renders

Pattern joins the four pivots with a dodger blue zigzag so you can see the shape it matched.

Buy places a wide lime arrow when the pattern completes at a low.

Sell places a wide red arrow when it completes at a high.

Both arrows draw at width 4, which keeps them visible against the pattern line.

• Pattern: zigzag, dodger blue, width 2
• Buy: arrow, lime, width 4, arrow code 233
• Sell: arrow, red, width 4, arrow code 234

Behind the plots

Finding the pivots

IsFractalHigh and IsFractalLow scan for turning points using `Depth` as the half-window. Each confirmed pivot records px, taken from high[i] on a high or low[i] on a low, along with whether it was a high. The tool keeps the last four, which is exactly what an AB=CD needs.

Measuring the two legs

ab takes MathAbs(pP[3] – pP[2]) and cd takes MathAbs(pP[1] – pP[0]). Using absolute distances means the same comparison works whether the pattern is rising or falling. Nothing about direction enters this step, only length.

Applying the tolerance

valid requires ab above zero and MathAbs(cd – ab) / ab at or below `Tolerance`. Expressing the difference as a fraction of AB rather than in pips is what lets one setting work across instruments. The completion pivot then decides direction: a finish at a low writes BuyArrow, a finish at a high writes SellArrow, each `ArrowOffsetPoints` clear of the candle.

Making it useful

The zigzag shows the exact four pivots the tool matched, which is worth checking before acting on an arrow.

Direction comes from where CD ended, not from the shape of the legs.

A tight tolerance produces textbook patterns and very few of them.

Completion happens at the fourth pivot, so the arrow arrives once that pivot confirms.

Alert channels in this build: popup, push notification, email and sound, one message per closed bar.

Four channels sit under `EnableAlerts`: a popup dialog, a mobile push notification, SMTP email configured in Tools then Options, and a sound file from the MT4 Sounds folder. Popup starts on and the other three start off, with `SoundFile` naming the clip. One message goes out per closed bar.

Every AB=CD Harmonic Pattern Indicator input

Core settings

Setting	What it does	Default
Depth	Half-window for the fractal pivot scan, default `5`. Larger values give fewer, cleaner pivots and coarser patterns.	5
Tolerance	How far CD may differ from AB, as a fraction, default `0.2`. That allows a 20% mismatch. Tighten it to 0.1 for stricter patterns.	0.2

Display settings

Setting	What it does	Default
ArrowOffsetPoints	Distance between candle and arrow, default `45` points, set wide because the arrows draw at width 4.	45

Alert settings

Setting	What it does	Default
EnableAlerts	master toggle.	on
EnablePopup	MT4 popup dialog.	on
EnablePushNotify	mobile MT4 push notification.	off
EnableEmail	SMTP email (Tools > Options > Email).	off
EnableSound	play sound file from MT4/Sounds/.	off
SoundFile	(see inputs panel)	alert.wav

Which markets and timeframes suit it

Harmonic work needs legs that are clearly separated, which is why the screenshot note for this build calls for EURUSD on H4. That timeframe gives well-spaced pivots and patterns that take days rather than minutes to form. On M15 a depth of 5 finds pivots constantly and most matched patterns are too small to trade. The daily chart works well if you are patient.

What this one cannot tell you

A 0.2 tolerance is generous. Two legs differing by a fifth still qualify, and some of those will not look like an AB=CD to the eye.

The tool measures length alone. It never checks the retracement ratio between the legs, which most harmonic traders treat as part of the definition.

Fractal pivots confirm late, so the tool names a pattern after its completion rather than as one approaches.
