Harmonic Pattern Detection Indicator: Five Pivot Legs

Written by Dominic Walsh · Published 8 Jun 2026 · Last updated 9 Sep 2026

The harmonic pattern detection indicator works from a pivot list. Five entries give four legs. Each pattern spec carries its own ratio bands. When no five-pivot shape fits, a fallback marks simpler three-pivot turns.

This build ships as a compiled .ex4 for MT4 and .ex5 for MT5; the screenshots below come from EURUSD H1.

Platforms	MT4 (.ex4) + MT5 (.ex5)
Chart window	Main price chart
Plots	2: Harmonic BUY, Harmonic SELL
Alerts	popup
Inputs	8

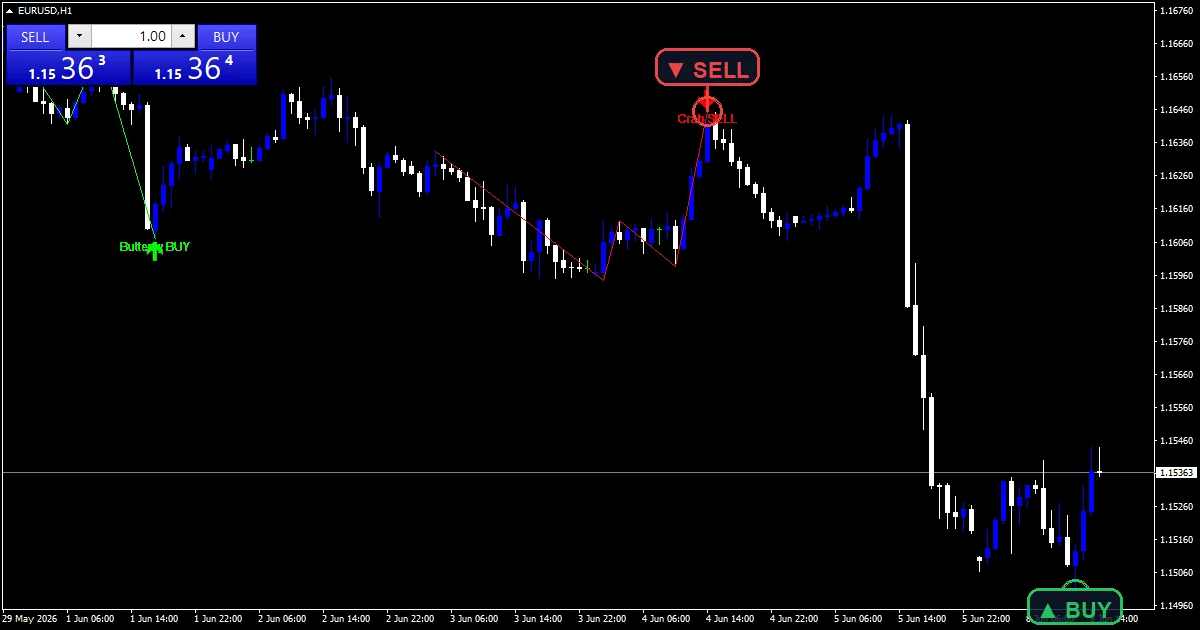

What the Harmonic Pattern Detection Indicator draws on the chart

`Harmonic BUY` uses arrow 233 and `Harmonic SELL` uses 234.

`InpDrawLines` adds trend objects for the XA, AB, BC and CD legs.

Text objects name the matched pattern at point D.

Marks sit `InpArrowOffsetPts` `30` points from the candle.

• Harmonic BUY: arrow, lime, width 2, arrow code 233
• Harmonic SELL: arrow, red, width 2, arrow code 234

How the Harmonic Pattern Detection Indicator calculates its values

Pivots then legs

`InpZigZagDepth` `3` builds the pivot list, and consecutive pivots must alternate between high and low. Five of them give the four leg lengths the ratio test needs.

Several specs, one tolerance

Each spec carries its own target for AB against XA. It also holds a range for BC against AB and a check on AD against XA. `InpFibTolerance` `0.30` widens every one of them, which is loose by harmonic standards.

The fallback matters

`InpFallbackOnEmpty` `true` means an empty search still produces marks. Three pivots forming a turn qualify instead. Those marks carry no ratio evidence, so they are a different signal wearing the same arrow.

How to read the signals

A labelled mark came from a real five-pivot match.

An unlabelled mark most likely came from the fallback.

`InpMaxPatterns` `6` caps how many shapes stay on the chart.

`InpMaxPatternBars` `500` bounds how far X can sit from D.

Alert channels in this build: popup.

One route ships here. `InpEnableAlerts` starts true and raises a terminal message at point D. The bar has to close first. No mobile, mail or sound option exists, so watch the alerts tab.

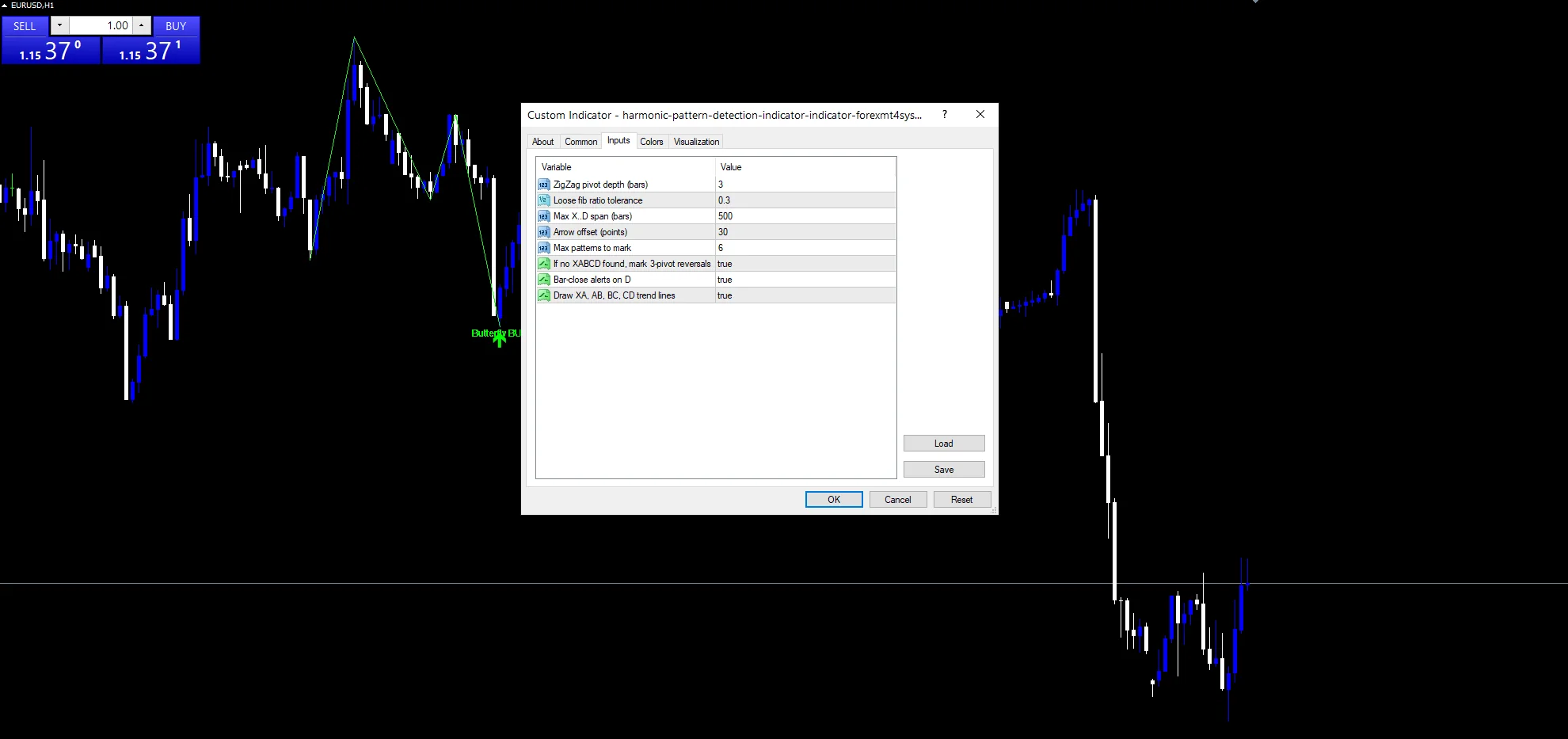

Every Harmonic Pattern Detection Indicator input

Core settings

Setting	What it does	Default
InpZigZagDepth	ZigZag pivot depth (bars). Bars either side that confirm a pivot, default `3`.	3
InpFibTolerance	Loose fib ratio tolerance. Slack applied to every ratio band, default `0.30`.	0.30
InpMaxPatternBars	Max X..D span (bars). Widest span from X to D, in bars, default `500`.	500
InpMaxPatterns	Max patterns to mark. How many shapes stay marked, default `6`.	6
InpFallbackOnEmpty	If no XABCD found, mark 3-pivot reversals. Mark three-pivot turns when no shape matches, default `true`.	on

Display settings

Setting	What it does	Default
InpArrowOffsetPts	Arrow offset (points). Points between the mark and the candle, default `30`.	30
InpDrawLines	Draw XA, AB, BC, CD trend lines. Draw the four leg lines, default `true`.	on

Alert settings

Setting	What it does	Default
InpEnableAlerts	Bar-close alerts on D. Bar-close alert at point D, default `true`.	on

Settings that fit your chart

A three-bar pivot finds far more swings than a deep fractal. EURUSD H1 is the reference chart, where `InpMaxPatternBars` `500` reaches back three weeks. On M15 the pivot list churns. H4 gives sturdier shapes.

When the Harmonic Pattern Detection Indicator fails

`InpFibTolerance` `0.30` is wide enough that quite loose shapes still qualify.

The fallback marks turns with no ratio behind them. That blurs what an arrow means.

A three-bar pivot is shallow, so the pivot list contains plenty of noise.
