TRIX measures how fast a triple-smoothed average is changing, which filters out most short noise. The THV trix v6.01 indicator runs three 9-bar exponential passes over price, measures the change of the last one, and draws it with a 5-bar signal line and a histogram of the gap. Signal crosses get marks.

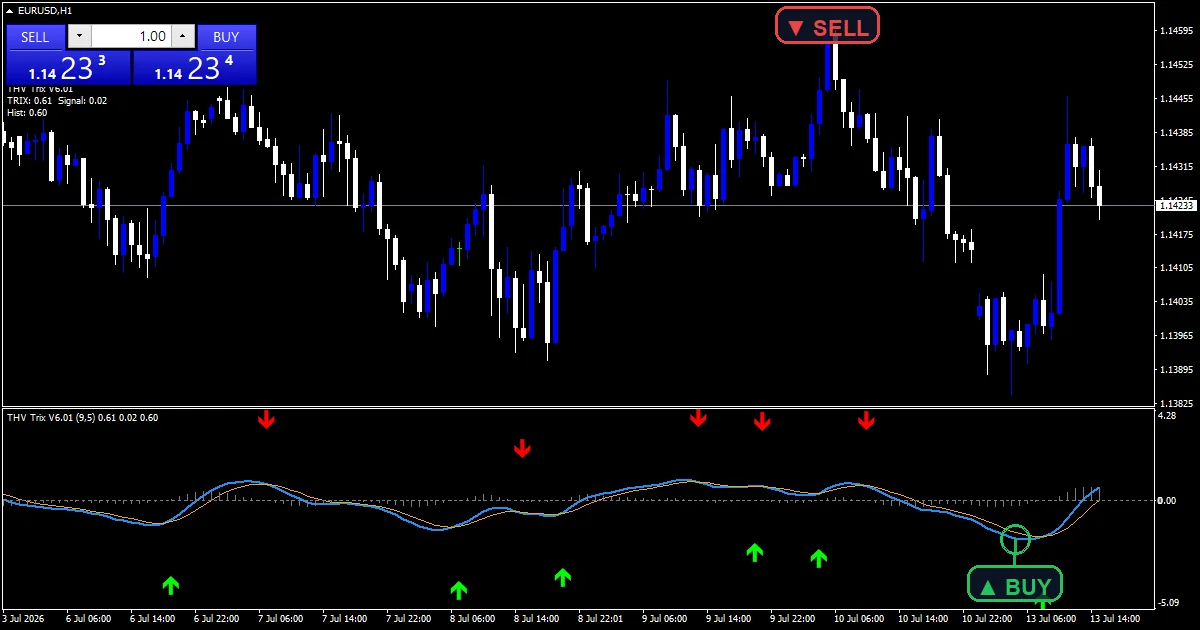

This build ships as a compiled .ex4 for MT4 and .ex5 for MT5; the screenshots below come from EURUSD H1.
| Platforms | MT4 (.ex4) + MT5 (.ex5) |
|---|---|
| Chart window | Separate window (levels 0) |
| Plots | 5: THV Trix, Signal, Slope, Trix Buy, Trix Sell |
| Alerts | popup, push notification, email, sound |
| Inputs | 12 |
What appears, and in which colour
Two lines, a histogram and marks in a pane.
`THV Trix` runs dodger blue at width 2.
`Signal` runs orange.
`Slope` fills slate gray for the gap.
`Trix Buy` sits just under the line in lime.
`Trix Sell` sits just over it in red.
- THV Trix: line, dodger blue, width 2
- Signal: line, orange, width 1
- Slope: histogram, slate gray, width 1
- Trix Buy: arrow, lime, width 2, arrow code 233
- Trix Sell: arrow, red, width 2, arrow code 234
From bar to value
Triple smoothing
`TrixPeriod` `9` sets each of three exponential passes over `AppliedPrice` `PRICE_CLOSE`.
Rate of change
The build takes the change of the third pass from one bar to the next and multiplies it by `ScaleFactor` `10000.0` for readable values.
Signal
`SignalPeriod` `5` smooths TRIX again. A cross up prints a buy, and `SignalCooldown` `2` spaces same-side marks.
What the plots are telling you
Above zero means the smoothed trend is rising.
Below zero, by contrast, means it is falling.
Slope bars, meanwhile, show TRIX minus signal.
Marks also sit `ArrowOffset` `3.0` units from the line.
However, crosses near zero are the weakest.
Warm-up needs about thirty bars.
Alert channels in this build: popup, push notification, email and sound, one message per closed bar.
Signal crosses raise one popup each through `EnableAlerts`; the phone, email and speaker routes begin off.
Every THV Trix V6.01 Indicator input
Core settings
| Setting | What it does | Default |
|---|---|---|
TrixPeriod |
TRIX EMA length (each of 3 passes). Length of each smoothing pass, `9`. | 9 |
SignalPeriod |
Signal EMA length. Signal smoothing, `5`. | 5 |
AppliedPrice |
Applied price. Price fed in, `PRICE_CLOSE`. | PRICE_CLOSE |
ScaleFactor |
Visual scale (forex-safe). Display multiplier, `10000.0`. | 10000.0 |
SignalCooldown |
Bars between same-side arrows. Bars between same-side marks, `2`. | 2 |
Display settings
| Setting | What it does | Default |
|---|---|---|
ArrowOffset |
Arrow gap (scaled units). Mark gap in pane units, `3.0`. | 3.0 |
Alert settings
| Setting | What it does | Default |
|---|---|---|
EnableAlerts |
Master alert switch, `true`. | on |
EnablePopup |
Popup, `true`. | on |
EnablePushNotify |
Phone route, `false`. | off |
EnableEmail |
(see inputs panel) | off |
EnableSound |
Speaker, `false`. | off |
SoundFile |
(see inputs panel) | alert.wav |
Settings that fit your chart
Triple smoothing suits hourly and four-hour charts. On the hourly EURUSD screenshot, crosses come a few times a week. On M15 they come daily, and on D1 they track swings of several weeks.
When to distrust it
Three passes add noticeable lag.
Signal crosses near zero whipsaw.
The scale factor only changes the display.
Only popup delivery is on at first.
Copy the compiled THV Trix V6.01 Indicator file into your MQL4/Indicators folder, and the MT5 build into MQL5/Indicators, then restart the terminal and drag it onto a chart. The step-by-step guide with screenshots is at how to install MT4 and MT5 indicators.
Download the THV Trix V6.01 Indicator for MT4 and MT5
The zip holds the compiled THV Trix V6.01 Indicator build for MT4 and MT5, plus a short README. Compiled files only, no source. Enter your email below and the download link arrives in your inbox.
Download this indicator free
Enter your email and the file is yours. You also get the full MT4 and MT5 library.
FAQ
What does TrixPeriod 9 smooth three times?
The closing price. Each pass is a nine-bar exponential average of the pass before, so short spikes are almost gone by the third pass, leaving the underlying trend.
Why multiply by ScaleFactor 10000.0?
The raw rate of change on forex is a tiny fraction of a percent. Multiplying by ten thousand gives readable values on the pane without changing where any cross happens.
When does a Trix Buy print?
On the bar where TRIX moves from at or below its five-bar signal to above it. `SignalCooldown` then blocks another buy for two bars, so one turn gives one mark.
What do the Slope bars show?
TRIX minus its signal line, bar by bar. Bars above zero mean TRIX leads its signal, which usually comes just before a cross up is confirmed on the pane.
Are results guaranteed?
No. Trading involves risk. Results are not guaranteed; past performance is not indicative of future results. Use the THV Trix V6.01 Indicator as one input. Always backtest before trading live.
