Cup and Handle Meaning in Forex Chart Analysis

The cup and handle meaning rests on one word: roundness. A base that curves gradually between two similar highs, followed by a shallow pullback, is what separates this shape from every lookalike.

Get the roundness wrong and you have labelled something else entirely. This guide keeps returning to that test, then covers the rim, the handle, the break and the projection.

Cup and Handle Meaning in Plain Terms

Price reaches a high, then declines. It bottoms out slowly rather than sharply, curves back up, and returns to roughly the level it left.

That curve forms the cup. A short pullback near the old high then forms the handle, and a close above the rim completes the structure.

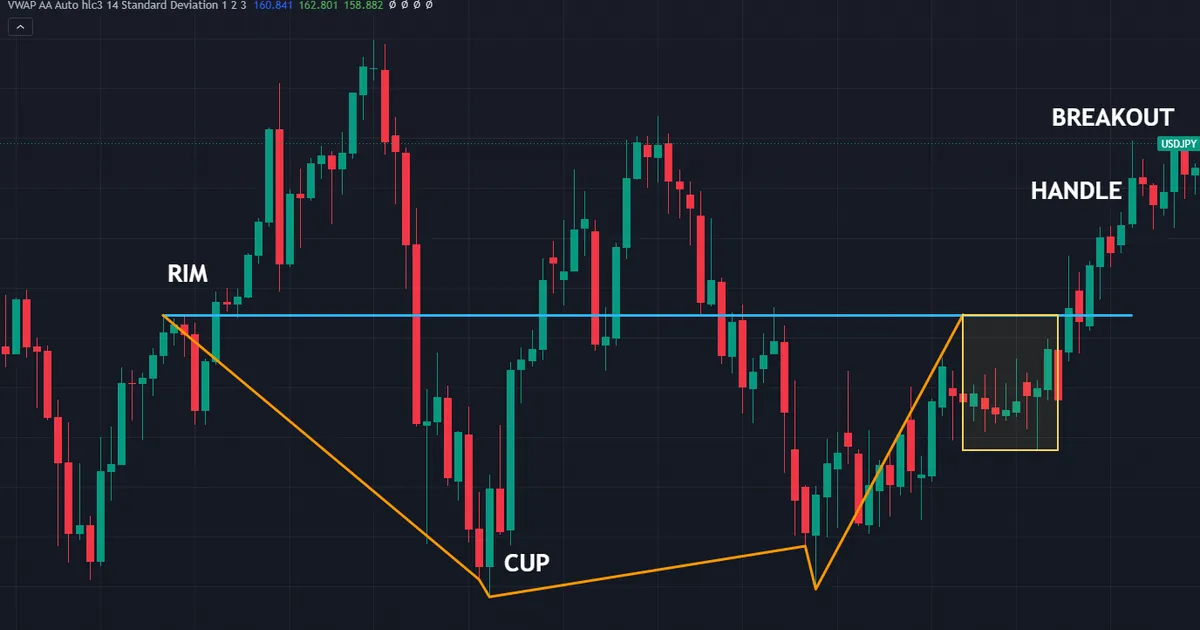

The chart above shows the shape on USDJPY weekly bars, with the rim at 150.918 and the cup low at 139.579. Its cup depth measures 11.309, and the handle sits just under the rim before the breakout.

The Rim

Draw a horizontal line across the highs on either side of the cup. That line becomes the rim, and every decision hangs on it.

The two highs rarely match exactly. Accept a small difference, set the tolerance in advance, then apply it the same way on every chart.

Mark the line before the handle finishes. A rim drawn afterwards tends to land wherever the trader wanted it.

The Rounded Base

The base should curve. Price drifts lower over many bars, flattens, then drifts higher over a similar span.

Depth matters as well. A cup that barely dips describes a range, while a very deep one starts to look like an unrelated decline.

Time gives the curve its meaning. Bases built over weeks or months read far more convincingly than ones squeezed into a dozen bars.

The Handle

After the recovery, price pulls back near the rim. That pullback forms the handle, and it should stay shallow.

Shallow means small relative to the cup. A pullback that retraces most of the recovery describes a failed rally rather than a handle.

Why Roundness Is the Whole Point

Two other shapes occupy the same part of a chart. Telling them apart keeps your records honest and your rules consistent.

What a Rounded Base Shows

Selling pressure fades gradually rather than stopping at a line. Each successive push lower travels a little less, and buying slowly takes over.

That gradual handover is the behaviour the shape records. Nothing about it forecasts the next move, though it does describe a genuine change in who controls the tape.

Location still decides whether it matters. A rounded base at an old floor carries weight, while one in open space carries rather less.

Versus a V Reversal

A V reversal has no base at all. Price falls hard, turns on a single bar or two, and recovers just as hard.

Nothing curves in that picture. Sellers were still in control right up to the turn, which is the opposite of a gradual handover.

So a sharp turn disqualifies the label. Call it a V reversal, trade it by whatever rules you apply to those, and keep the records separate.

Versus a Double Bottom

A double bottom shows two distinct touches of a level with a clear peak between them. You can point at low one and low two.

A cup shows no such pair. The base is one continuous curve, and picking out two separate lows requires imagination rather than observation.

Our guide to the double bottom pattern covers that two-touch version in full. If you can label the lows, use that guide instead of this one.

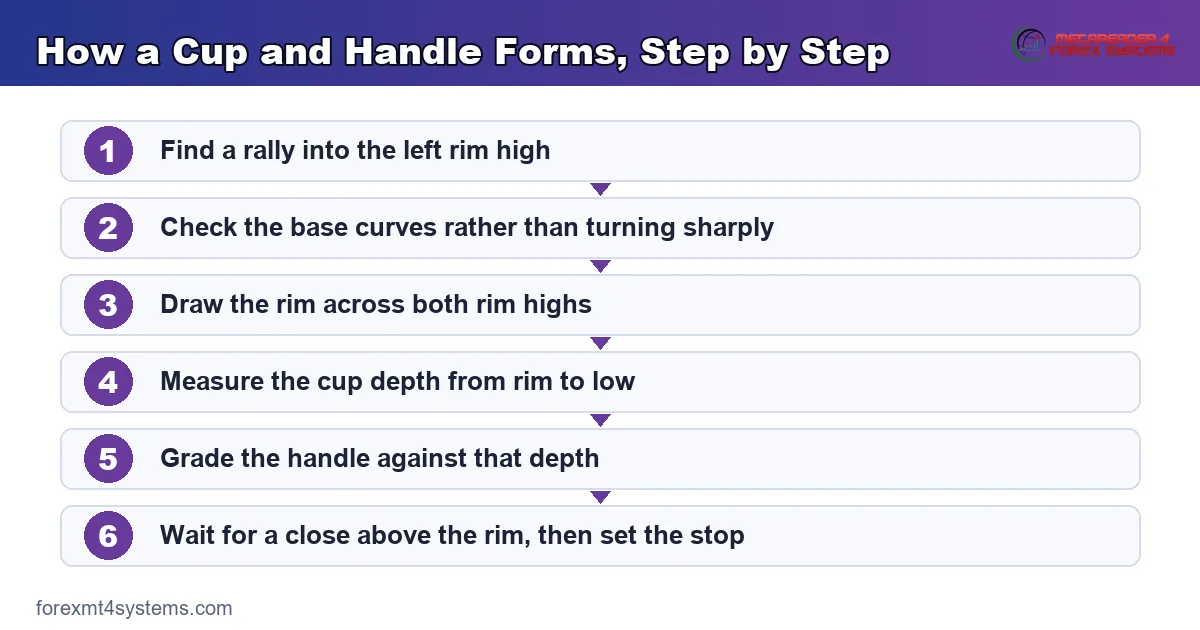

How the Shape Forms, Step by Step

Work through the same sequence on every candidate. Six steps take you from a curve to a managed position.

1. Find the prior advance. A rally should lead into the left rim high.
2. Check the base curves. Reject sharp Vs and reject flat ranges.
3. Draw the rim. Run a horizontal line across the highs on both sides.
4. Measure the cup depth. Take the distance from the rim down to the lowest point.
5. Grade the handle. It should stay shallow relative to that depth.
6. Wait for a close above the rim. Then set the stop under the handle low.

Step two rejects most candidates, and that is the point. Because sharp turns look exciting, traders label them generously and learn the wrong lesson afterwards.

Keep the order fixed. Traders who project a target before checking the base talk themselves into trades the chart never offered.

What the Curve Says About Supply and Demand

A chart pattern records behaviour that already happened. Reading it that way keeps expectations sane and stops the shape becoming a forecast.

Sellers Fading Rather Than Stopping

Each push lower during the left side of the cup travels a little less. Nobody rings a bell at the low, and no single bar marks the handover.

Buyers then take over just as gradually. That symmetry is why the curve looks smooth rather than angular on a chart.

Traders often describe the base as accumulation. The word adds nothing testable, so treat it as vocabulary rather than evidence.

Why the Handle Appears at All

Price returning to an old high meets sellers who remember it. Some of them bought near the previous rally and now break even at last.

Their exits produce the pullback. Once that supply clears, the next attempt at the rim faces less resistance than the first.

Shallow handles suggest that supply was thin. Deep handles suggest the opposite, which is why the depth comparison matters so much.

What the Structure Cannot Tell You

No shape carries a reliability figure worth quoting. Published testing of classical chart patterns has produced modest and inconsistent results across markets and periods.

Definitions shift the numbers as well. Two analysts applying different roundness tests to the same chart will disagree about whether a cup even formed.

Grading the Handle

The handle decides whether the shape earns a trade. It also sets your stop, so study it closely.

Depth Relative to the Cup

Compare the handle pullback against the cup depth. A handle worth a fraction of the cup reads cleanly, while one approaching half the cup does not.

Deep handles undo the story. If price gives back most of the recovery, buyers were not really in control after all.

Our Fibonacci calculator makes the comparison quick. Feed it the cup low and the rim, then check where the handle low actually sits.

Where the Handle Should Sit

Handles belong in the upper part of the cup. A pullback that reaches back toward the base means the recovery failed.

Position tells you more than shape does. A shallow drift just under the rim describes patience, while a plunge to the middle describes doubt.

Drift Direction and Duration

Most handles drift slightly downward or sideways. A handle that keeps making higher highs is simply a continued rally.

Duration should stay modest against the cup. A base of many months paired with a handle of many months describes two separate events.

Draw the handle boundary as a small trend line. Our guide on how to use trend lines covers keeping those lines honest.

Confirmation Is a Close Above the Rim

The rim works like any other level. Price tests it, pierces it, and only a settled close tells you which side won.

Wicks Through Versus Closes Above

Thin liquidity produces spikes constantly. A poke a few pips above the rim often fades within the hour and leaves nothing behind.

A close above shifts the balance. Traders short from either rim high now sit underwater, and their covering adds to the buying.

So write the rule into your plan in advance. Otherwise the urge to act early arrives exactly when the chart looks most exciting.

Which Timeframe Supplies the Close

Match the trigger to the chart that drew the shape. A weekly cup deserves a weekly close, not a five-minute one.

Lower timeframes multiply false breaks. One weekly close carries more information than forty short-term closes around the same line.

The Retest of the Rim

Price often returns to the rim once it gives way. Old resistance then acts as support, and many traders prefer that second entry.

Waiting carries a cost. Plenty of breaks run without any retest, so patience sometimes means missing the move entirely.

Split the difference if that suits you. Take part on the close and part on the retest, then manage both against a single stop.

The Measured Move From the Cup Depth

The classic projection uses the cup itself. Measure from the rim down to the lowest point, then add that distance above the rim.

Treat the result as a projection. Price reaches it sometimes and stalls well short at other times, which is exactly why partial exits exist.

Working the Numbers on a Daily Chart

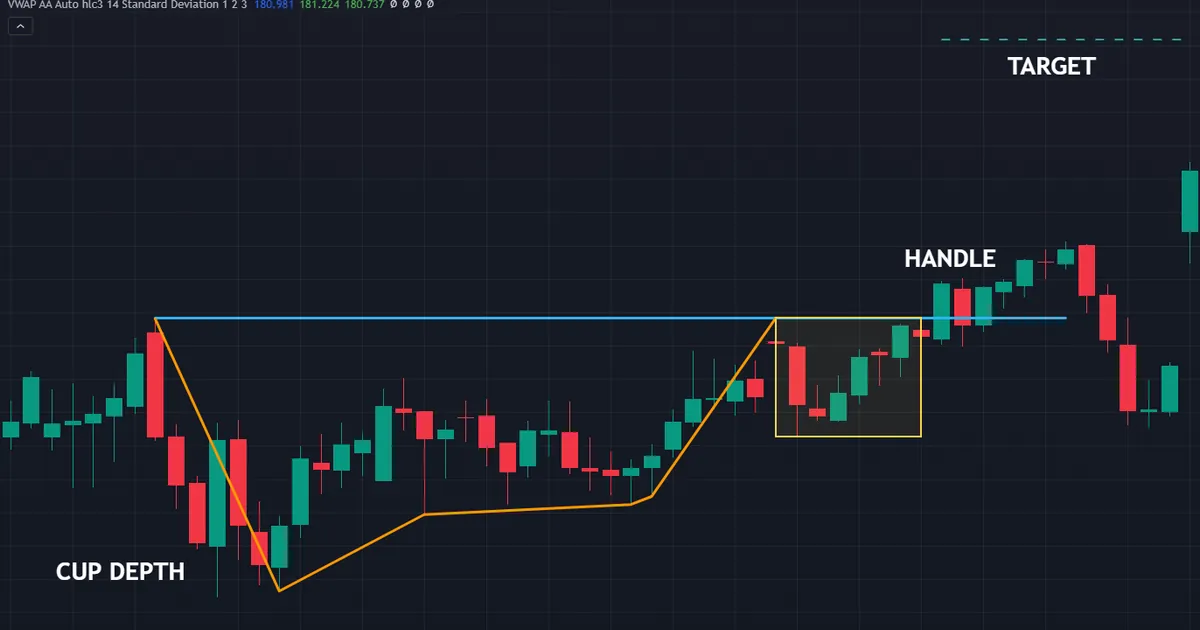

The chart above tracks a completed structure on EURJPY daily bars. Its rim runs at 173.913 and the cup low sits at 169.724.

That gives a cup depth of roughly 4.18. Add the depth to the rim and the projection lands near 178.09, with the handle sitting just below the line before the break.

Compare that distance with your stop before entering. A shallow handle keeps the stop tight, which is one practical reason traders prefer them.

Why Price Often Stops Short

Obstacles sit in the way. Old swing highs, round numbers and session extremes all attract profit taking before any projection arrives.

Volatility shapes the outcome too. A projection built from a deep weekly cup asks a great deal of a quiet month.

So mark the obstacles between entry and target first. Then decide which one deserves a partial exit rather than holding for the full measure by default.

Partial Exits and the Trail

Book a slice at the first obstacle. Taking money off the table early makes holding the rest through an ordinary pullback far easier.

Trail the remainder behind structure. Each new higher low above the rim supplies a fresh reference, so the market sets the pace.

Managing the Trade After the Break

Entry solves half the problem. What happens over the following sessions decides most of the outcome.

Three Ways Traders Enter

The first buys the close above the rim at market. It catches every break, and it accepts a wider stop and a worse average price.

The second waits for the retest. It offers a tighter stop and a better fill, though many breaks never come back to offer one.

The third splits the order. Half goes in on the close, half rests as a limit at the rim, and both halves share one stop.

Where the Stop Belongs

Under the handle low suits most traders. That level sits close enough to keep the risk small and far enough to survive ordinary noise.

Deeper stops go under the cup low. They survive almost anything, though they widen the risk so much that the position must shrink dramatically.

Sizing and Moving the Stop

Fix the money at risk first, then let the stop distance decide the lots. Never let a wide stop tempt you into a wider loss.

Leave the stop alone until the chart offers a reason to move it. A first higher low above the rim gives you one.

How It Differs From Its Nearest Neighbours

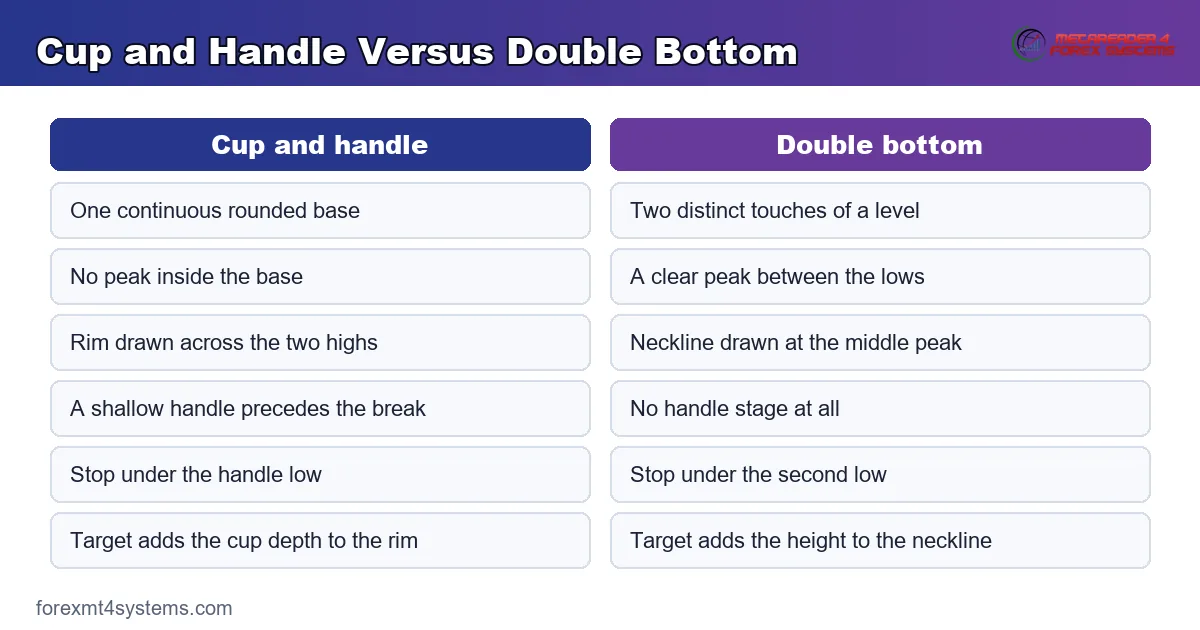

Labelling discipline saves more money than entry precision. The comparison below sets the rounded shape against its most common lookalike.

The Rounding Bottom Without a Handle

Some bases curve up and simply keep going. No pullback forms near the rim, so no handle exists to trade against.

That shape still deserves attention. It just needs a different stop reference, since the handle low is the level this structure normally uses.

The Ascending Base and Other Cousins

Some bases recover in a stair-step rather than a curve. Each pullback holds higher, which reads as strength but fails the roundness test.

Label those separately and treat them on their own terms. Forcing every rising base into one bucket makes your later review useless.

When You Cannot Decide

Ambiguous charts happen constantly. If two labels fit equally well, the honest answer is that neither applies cleanly.

Skip those cases. Missing a trade costs far less than filing a mislabelled example that corrupts your own statistics later.

Common Cup and Handle Mistakes and the Fixes

Most damage around this structure traces back to a handful of habits. Each one has a fix that costs nothing but discipline.

Calling a V Reversal a Cup

Sharp turns fail the roundness test outright. Zoom out, look at the shape of the base, and reject anything that turns on one or two bars.

Accepting a Deep Handle

A handle that gives back most of the recovery describes weakness. Compare it against the cup depth, and set a limit you apply every time.

Buying Inside the Handle

The handle is a pullback, not a completion. Buy it if your plan allows, but log it as a pullback trade rather than a completed structure.

Redrawing the Rim to Force a Break

Lowering the line until a close clears it defeats the exercise. Anchor the rim at the highs, then leave it in place.

Ignoring the Larger Trend

A base inside a firm downtrend on the higher chart fights the larger flow. Our guide to moving averages covers one quick way to read that context.

Holding for the Full Projection Regardless

The measured move offers a reference point. Take partial profit at obvious levels along the way, then let a trailing stop handle the rest.

Cup and Handle Quick Reference

Keep this table beside your chart while the shape becomes familiar. Each row states a condition rather than an outcome.

Element	What to check	Common practice
Prior advance	A rally into the left rim high	Weeks or months, not days
Base shape	Rounded, not a sharp V	Gradual decline and gradual recovery
Rim	Horizontal line across both highs	Small tolerance, set in advance
Cup depth	Rim down to the lowest point	Measured before the handle forms
Handle	Shallow against the cup depth	Sitting in the upper part of the cup
Trigger	A close above the rim	Close on the timeframe that drew the shape
Stop	Under the handle low	Extra room for a stop run
Target	Cup depth added to the rim	Partial exits at levels along the way

Notice what the table omits. Nothing here suggests how often the shape follows through, because that figure shifts with the market, the period and the definition applied.

When the Cup and Handle Fails

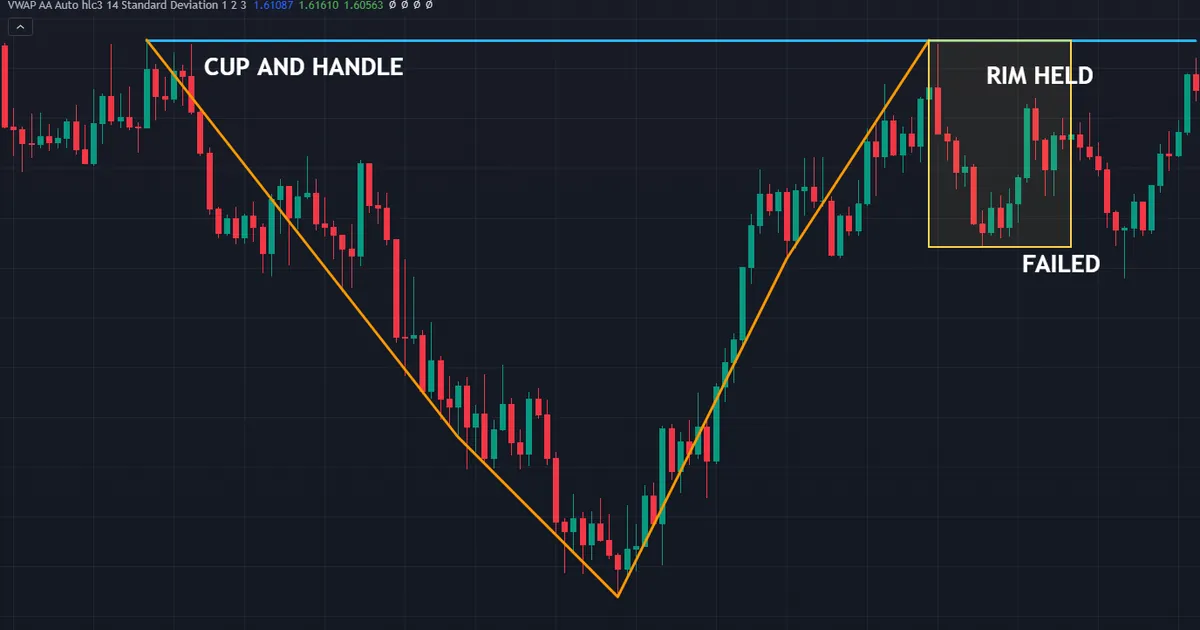

Failures teach faster than clean examples. The chart below shows a structure on EURCAD weekly bars that did not deliver: the rim sat at 1.5115 above a cup low of 1.28761, and the handle gave way instead of holding.

The Handle Keeps Deepening

A handle that slides further and further stops being a handle. At some point the pullback simply becomes a new decline.

Set a level in advance where you stop calling it one. A cup depth around 0.2237 leaves plenty of room for a handle to fail well before the base.

The Rim Never Gives Way

Without a close above the line there is no trade to take. Traders who bought in anticipation become the supply that pushes price back down.

Big timeframes make that wait expensive. A weekly structure can grind sideways for months, and impatience costs more than the eventual break pays.

The Base Was Never Round

Loose labelling causes many of these losses. Charts get called cups because a trader wanted one, not because the base actually curved.

News Overrode the Structure

A rate decision or a surprise print erases any chart shape. Check the calendar before planning a trade around a level near a scheduled release.

The Break Came on a Wick

Traders who act on a spike through the rim take a trade the pattern never offered. Wait for the close, and most of these failures never reach your account.

Related Structures to Study Next

Three distinct lows change the label entirely. Our how-to on the inverse head and shoulders covers the version with a deeper middle low and a neckline across two peaks.

The topping mirror uses the same logic in reverse. Our explainer on the head and shoulders pattern meaning covers how the neckline decides at a ceiling rather than a floor.

For tooling, our pattern recognition indicators archive collects the scanners that mark these shapes automatically, while our trend indicators archive covers the context tools that pair with them.

One habit outranks all the labelling. Time spent on level drawing pays back faster than time spent memorising outlines, because a base at a meaningful floor beats a textbook curve in open space.

FAQ

What does cup and handle mean on a chart?

It describes a rounded base between two similar highs, followed by a shallow pullback near those highs. A horizontal line across the highs forms the rim, and the structure completes only when price closes above it.

How round does the base have to be?

Round enough that you cannot point at two distinct lows. Gradual decline, a flat stretch and a gradual recovery all belong in the picture, while a turn on one or two bars does not.

How deep should the handle be?

Shallow against the cup depth, and positioned in the upper part of the cup. No universal number applies, so pick a limit, write it into your plan and apply it consistently.

Where does the stop belong?

Under the handle low for most traders, with a little room for a stop run. A deeper stop under the cup low survives more noise, so shrink the position accordingly to keep the risk unchanged.

How is the target calculated?

Add the cup depth to the rim. Treat the number as a projection rather than a destination, mark the obstacles between entry and target, and take partial profit at the obvious ones.

Can the pattern appear upside down?

Yes, and traders describe that mirror as an inverted cup and handle at a market high. The same tests apply, with the rim below the base and confirmation coming on a close beneath it.

Does the cup and handle work in forex?

It appears on currency charts, though clean examples take real time to build and show up more often on daily and weekly bars. No chart shape carries a dependable edge on its own, so pair it with a level that already mattered, a written trigger and sensible sizing. Results are not guaranteed; past performance is not indicative of future results.
