What Is a Stop Limit Order, and When Does It Miss Entirely

Written by Dominic Walsh · Published 11 Aug 2026 · Last updated 17 Aug 2026

Most order types make one promise. A stop limit order tries to make two, and the compromise it strikes has a sharp edge: in a fast move it can miss the trade entirely.

That miss risk is the whole subject. You accept it in exchange for control over the price you pay, and knowing when the swap is worth making decides whether the order helps or hurts.

What a Stop Limit Order Actually Does

Start with the plain version. A stop order becomes a market order the moment price touches it, so it fills at whatever the book offers.

The hybrid changes that final step. It becomes a limit instead, which means the fill happens only at your capped price or better.

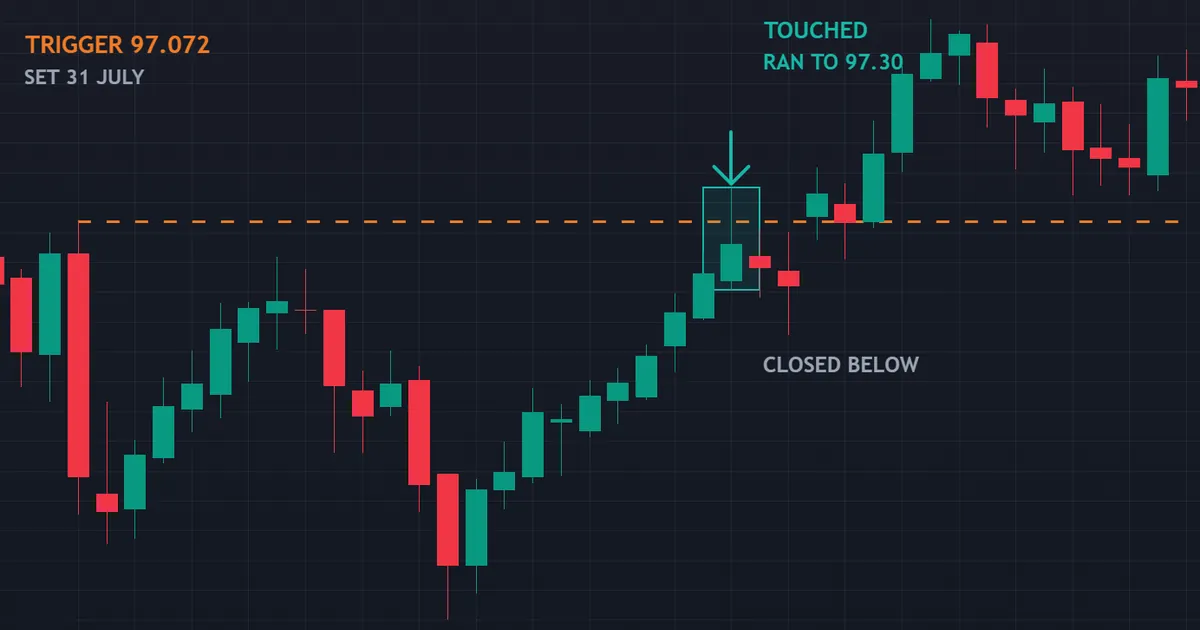

Above sits an ordinary buy stop on AUDJPY daily bars at 97.072, set on 31 July 2025 and triggered on 2 September. That session opened at 96.68, ran up to 97.3 through the level, then closed back at 96.92.

The stop half worked exactly as designed. A stop-limit adds a second number on top, and where you put that number decides everything that follows.

Two Prices, Not One

Every stop-limit carries a trigger price and a cap. The trigger wakes the order up, and the cap tells your broker how much you will accept.

So the ticket asks for both. Many platforms label them stop and limit, while others use trigger and price, which confuses people at first glance.

Get the pair the wrong way round and nothing works. On a buy the cap sits at or above the trigger; on a sell it sits at or below.

Think of the two numbers as a condition and a boundary. The condition says when to act, while the boundary says how much you will pay for acting.

The Stop Price Half

The trigger behaves identically to a plain stop. One tick through your level activates the order, and a close is never required.

Nothing about that half controls the fill. It only decides when the second half starts working.

Traders who want the trigger mechanics in isolation can read our stop order guide, which covers exits and breakout entries in detail.

The Limit Price Half

Once the trigger fires, a limit order enters the book at your cap. From that moment it follows every ordinary limit rule.

It fills at your price or better, never worse. If the book has nothing there, it waits, and if price runs away it keeps waiting.

Our limit order guide covers those matching rules in full.

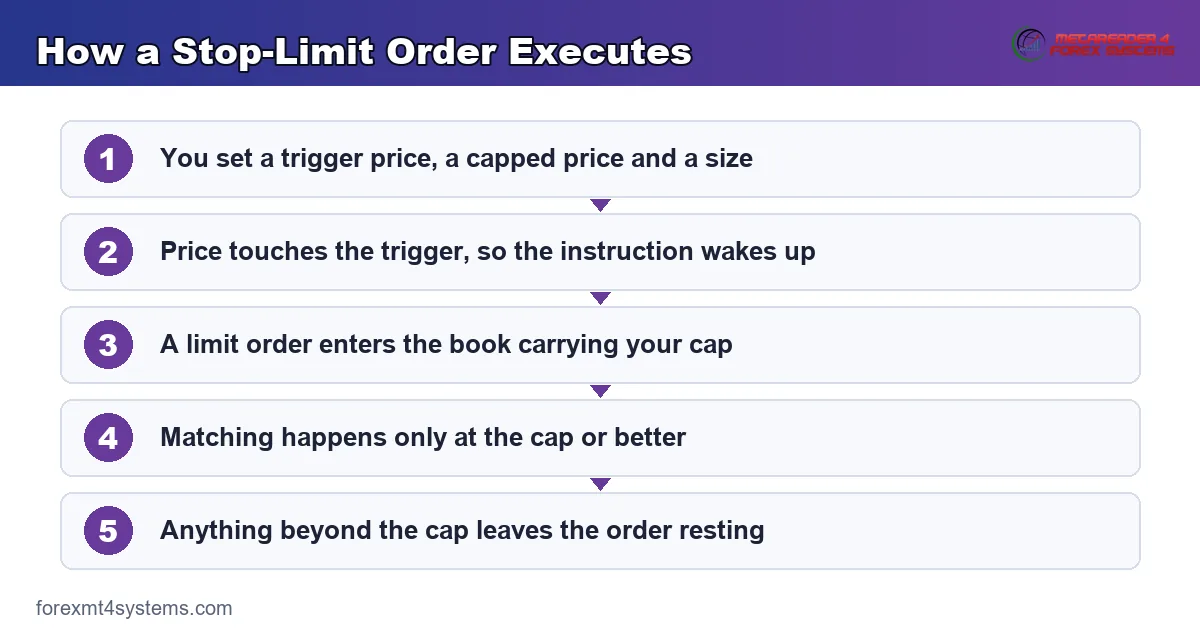

How the Order Executes, Step by Step

Five steps describe the whole lifecycle. Only the last two carry the risk.

1. You set a trigger, a cap and a size. All three sit on the broker’s server until price arrives.
2. Price touches the trigger. The instruction wakes up on a single tick, exactly like a plain stop.
3. A limit order enters the book. It carries your cap as its maximum acceptable price.
4. Matching happens, or it does not. If size exists at your cap or better, you fill; otherwise the order rests.
5. The order stays live until it expires. A missed fill leaves it waiting rather than cancelling it for you.

Step four holds the entire trade-off. Everything people love and hate about this instruction happens right there.

The Gap Between the Two Prices

Distance between trigger and cap sets your tolerance. A tight gap protects the price hard and misses often, while a wide gap fills reliably and controls less.

Measure the gap against recent volatility rather than picking a round figure. On the daily example above, a cap only a fraction of a pip above the trigger would have needed price to pause inside a very narrow window.

So treat the gap as a dial, not a switch. Nothing forces you to choose between total control and none.

What Partial Fills Look Like

Limits fill against whatever size sits at your price. If the book holds half your order, you get half a position and the rest keeps waiting.

That outcome catches traders by surprise. Your risk calculation assumed one size, and the account now holds another.

Our note on partial fills works through what to do next.

Sell-Side Placement

Selling mirrors the logic exactly. The trigger sits below the market, and the cap sits at or below the trigger.

You are saying: once price breaks down to here, sell me out, but not below this floor. The floor is precisely what can leave you holding a position you wanted gone.

Run through a sell example on paper once. Writing both numbers down before you touch a ticket removes almost every reversal error.

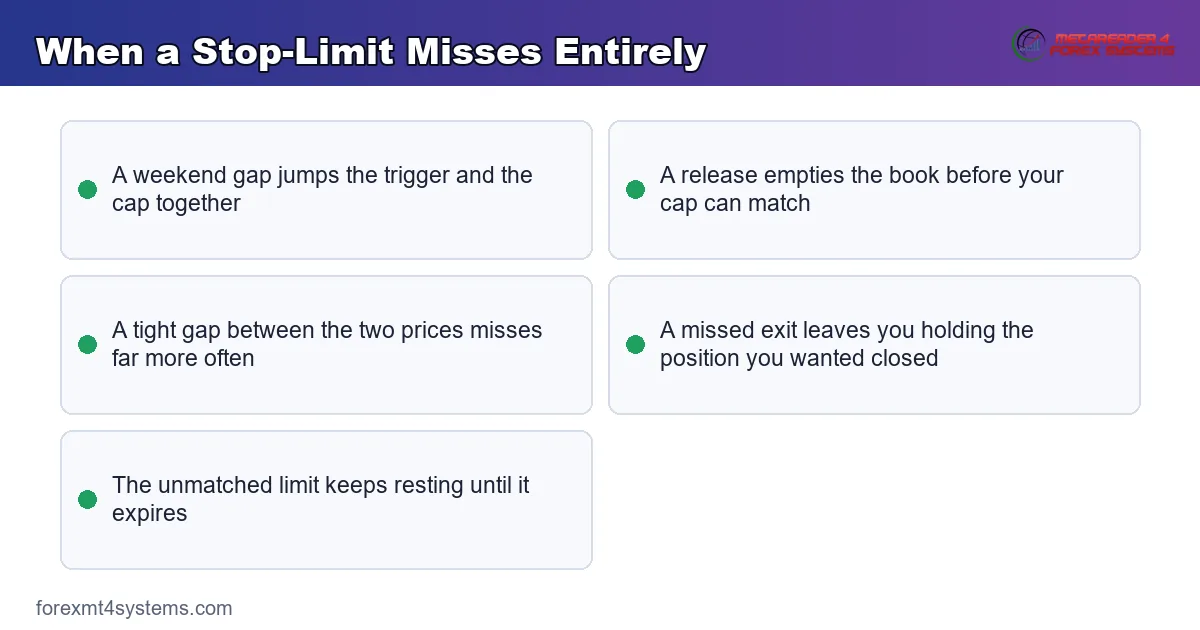

The Miss Risk Is the Whole Story

Every other property follows from this one. Understand the miss and you understand the instruction.

How a Miss Happens

Price runs through the trigger and the cap in the same movement. The limit enters the book above the market and simply sits there.

Gaps produce this most reliably. A weekend reopen away from Friday’s close can jump both numbers before anyone trades, and our weekend gap guide covers the mechanic.

Fast releases do the same on a smaller scale. The book empties, price relocates, and your cap describes a market that no longer exists.

Thin instruments manage it without any news at all. A single large order can clear several price levels, and yours may sit one step behind the sweep.

Why That Hurts Most on Exits

An entry that misses costs you an opportunity. An exit that misses costs you an open position in a market moving against you.

That asymmetry matters enormously. A protective exit exists precisely for the conditions in which a stop-limit fails.

So most experienced traders keep protective exits as plain stops. Slippage on the way out beats holding a loser because a cap went unmatched.

Counting the Misses Honestly

Missed orders leave no record. Nothing appears on the statement, so the cost stays invisible unless you write it down yourself.

Log each one as it happens. Note the trigger, the cap and how far price travelled without you.

After thirty entries the pattern speaks clearly. Either your cap sits too tight, or the instrument moves too quickly for this instruction.

The Honest Comparison

Three instructions sit on a spectrum. A market order takes any price, a stop order takes any price once triggered, and a stop-limit refuses prices beyond your cap.

Each step toward price control costs execution certainty. Nothing in the design lets you keep both.

Our comparison of stop order vs limit order lays out the two parent instructions side by side.

A Worked Example: The Limit Half in Action

The cap half behaves like any resting limit. The chart below shows one working perfectly.

A buy limit sat at 113.106 on AUDJPY hourly bars, set at 11:00 on 17 July 2026. Price arrived during the 21:00 hour on 19 July.

What the Hour Showed

That hour opened at 113.178 and traded down to a printed low of 113.11 before closing at 113.156. Chart bars print the bid while a purchase fills at the ask, so the level matched even though the printed low stopped a fraction above it.

Adverse movement afterwards measured under zero, meaning price never traded below the entry at all. Favourable movement reached 7.99 ATR, which is an unusually clean outcome.

Notice how much the entry level mattered here. A market order a few pips higher would have kept the same idea and given away the cushion.

What the Cap Was Really Doing

A cap does one job: it refuses prices you did not agree to. Here that refusal cost nothing, because price arrived gently and left size at the level.

Change the conditions and the same cap behaves differently. Drop the hour into a release window, and price can jump the level while the order sits waiting.

So judge a cap by the market it meets, not by the order that filled. One clean fill proves very little on its own.

Adding a Stop Trigger to That Level

Now imagine wrapping the same cap inside a stop-limit. You would need a trigger above it and price would have to reach the trigger first.

That combination changes the trade completely. The order stops being a patient buyer and becomes a conditional one, waiting for movement before it will consider filling.

Neither version is better in the abstract. They answer different questions, so the setup has to tell you which question you are asking.

When a Stop-Limit Genuinely Helps

Three situations justify the miss risk. Outside them, a plain stop usually serves you better.

Illiquid Instruments

Thin books produce shocking fills. Exotic crosses, small-cap shares and out-of-hours markets can hand you a price several times worse than the screen suggested.

A cap draws a line under that. You accept the chance of no fill rather than the certainty of a terrible one.

Check when your instrument actually trades. Our forex market hours tool shows which sessions carry real participation.

Scheduled Volatility

Around a release, spreads widen and depth vanishes. A plain stop entering that market accepts whatever it finds.

A cap refuses the worst of it. Many traders simply stand aside instead, which our note on why spreads widen explains in more depth.

Large Size

Big orders walk the book by definition. The first portion fills near the screen price, and each subsequent portion costs more.

A cap stops the walk partway. You end up with a partial position at an acceptable average rather than a full one at a poor average.

Where It Rarely Helps

Liquid majors in an ordinary session need no cap. Depth already protects you, so the extra condition simply adds a way to miss.

Small positions rarely need one either. A single mini lot barely disturbs the book, and the price you see stays close to the price you get.

Stop-Limit Orders on MetaTrader

Platform support varies more than traders expect. The difference matters if you trade retail forex.

What MT4 Offers

MetaTrader 4 carries four pending types: buy limit, sell limit, buy stop and sell stop. No native stop-limit appears in the order dialogue.

Traders who want the behaviour there build it from a script or an advisor. That approach depends on your terminal staying connected, which differs sharply from a server-side order.

What MT5 Adds

MetaTrader 5 introduced two extra types: buy stop limit and sell stop limit. The ticket asks for a stop price and a separate limit price, exactly as described above.

Those orders rest on the server, so they keep working with the terminal shut down. That single detail makes the MT5 version far more practical.

Reading the Fields Correctly

Labels differ between platforms and between brokers. Some tickets say stop and limit, others say trigger and price, and a few reverse the order of the boxes.

Read both numbers back before you confirm. A reversed pair produces either a rejection or an order behaving nothing like your plan.

Common Mistakes and the Fixes

Six habits turn this instruction into a liability. The panel below collects the corrections.

Using It as a Protective Exit

The order can miss precisely when you need it. Keep protective exits as plain stops, and accept slippage as the cost of getting out.

Setting the Two Prices Identically

A cap equal to the trigger leaves no tolerance whatsoever. Give the cap room measured from recent volatility, then check the fill rate over a month.

Assuming a Miss Cancels the Order

The limit stays live in the book after a miss. Watch it, because a later retrace can fill you into a position you no longer want.

Ignoring Partial Fills

Half a position carries half the intended risk and half the intended reward. Decide in advance whether you top it up or trade the remainder as it stands.

Reversing the Pair on a Sell

On a sell the cap belongs at or below the trigger. Reversing them produces a rejection, or worse, an order that behaves nothing like your plan.

Forgetting the Expiry

An order set on Monday can fire on Thursday into a different market. Attach an expiry, then read the pending list before every session.

Quick Reference: Setting the Two Prices

Keep this table beside your platform while the habit forms. It answers most of the setup questions.

Direction	Trigger sits	Cap sits	What a miss means
Buy stop-limit	Above the market	At or above the trigger	You stay flat while price runs
Sell stop-limit	Below the market	At or below the trigger	You keep a position you wanted closed
Tight gap between prices	Unchanged	Very close to the trigger	Frequent misses, strict price control
Wide gap between prices	Unchanged	Well beyond the trigger	Rare misses, loose price control
Thin market or big size	Unchanged	Set from measured volatility	Partial fills become likely

Notice that every row trades one thing for another. No setting removes the compromise, and no broker setting removes it either.

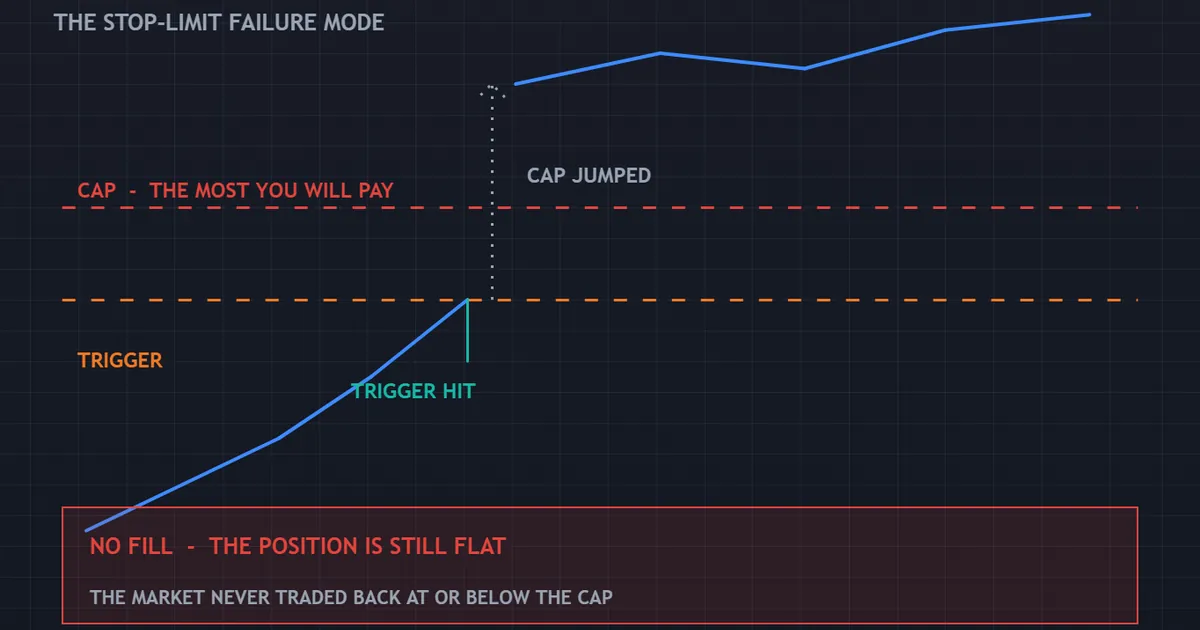

What Goes Wrong: The Order That Never Filled

The failure mode has nothing to do with direction. You can read the market correctly, place the order correctly, and still end the day flat.

The panel above shows the sequence. Price reaches the trigger, the limit enters the book, and the market keeps moving past the cap without ever trading back to it.

Why Being Right Does Not Help

The move you predicted happened. Your instruction simply refused to chase it, which is exactly what you told it to do.

That outcome feels worse than a loss to most traders. Watching a call work while you sit flat produces the impulse to chase, and chasing usually costs more than the missed entry did.

So decide the response in advance. Write down whether a miss means you skip the trade, wait for a pullback, or take the next signal.

The Second Failure Nobody Expects

A missed order keeps waiting. Hours later price can retrace into your cap and fill you into a trade whose reason has long expired.

Set an expiry to close that door. Alternatively, cancel manually the moment the market leaves your cap behind.

What the Miss Does Not Prove

One unfilled order says nothing about the instruction. It shows the trade-off working as designed, and the same design saves you from a terrible fill on other days.

Judge it over a quarter of records rather than one afternoon. Count both the misses and the bad fills you avoided, then decide.

Building It Into Your Routine

A hybrid order needs a rule, not a mood. Three habits keep it disciplined.

Decide the Job Before the Ticket

Ask one question first: would a bad fill hurt more than no fill? If yes, a stop-limit fits; if no, use a plain stop and move on.

Answering in advance removes the worst moment for judgement. Nobody thinks clearly while a market runs away from them.

Set the Cap From Measured Volatility

Take the recent average range and use a fraction of it as your gap. Round numbers feel neat and describe nothing about the market you trade.

Revisit the figure each month. A gap that suited a quiet stretch will miss constantly once ranges expand.

Log Every Miss Alongside Every Fill

Two columns answer the only question that matters. One counts the orders that missed, and the other counts the bad fills your cap prevented.

After a quarter the balance becomes obvious. Traders running charts on desktop platforms can also automate the alerting side with tools from our MT4 indicators archive.

Review the Pending List Daily

Open the order list each evening and read every line. Ask whether the trigger still marks something real, and whether the cap still reflects current ranges.

Cancel anything you cannot justify in a single sentence. Stale hybrid orders cause more trouble than stale plain ones, since a miss leaves them resting quietly in the book.

Related Concepts Worth Reading Next

This instruction sits between two simpler ones. Reading all three together makes each easier to hold in mind.

Start with our guide to slippage in trading if the fill mechanics still feel abstract, since a cap exists to control exactly that.

After that, read the direct comparison of stop and limit behaviour. Between them those two articles cover almost everything the hybrid can do.

FAQ

What is the difference between a stop order and a stop limit order?

The final step. A stop becomes a market order on the touch and fills at whatever the book offers, while a stop-limit becomes a limit and refuses anything beyond your cap. The first always fills and may fill badly; the second may not fill at all.

Can a stop limit order fail to execute?

Yes, and that is its defining feature. If price runs through both the trigger and the cap without trading back, the limit sits in the book unmatched. Gaps and fast releases produce this outcome regularly.

Should I use one for my stop loss?

Usually not. A protective exit has to execute, and the conditions that make a stop-limit miss are the same conditions that make an exit urgent. Keep protective exits as plain stops unless you have a specific reason to do otherwise.

How far apart should the trigger and the cap be?

Far enough to fill, close enough to matter. Start from recent average range rather than a round number, then check your fill rate after a month of orders and adjust once.

Does the order cancel itself after a miss?

No. The limit stays live in the book until it expires or you cancel it, so a later retrace can fill you long after the reason has gone. Attach an expiry when you place it.

Do all brokers support this order type?

Most do, though the labels vary and a few retail forex platforms omit it. Check your platform’s order dialogue, then test with a small position before you rely on the behaviour in a live trade.

Does MetaTrader support this order type?

MetaTrader 5 does, through its buy stop limit and sell stop limit types, and those rest on the broker’s server. MetaTrader 4 offers only the four plain pending types, so the same behaviour there needs a script or an advisor on a connected terminal.

Is a stop-limit useful for entries?

More often than for exits, yes. A missed entry costs an opportunity rather than an open loss, so the trade-off sits on the friendlier side. Track the misses alongside the fills for a full quarter, then judge the method over that long run rather than a handful of orders. Results are not guaranteed; past performance is not indicative of future results.
